General
Brand
Deepcool
Model

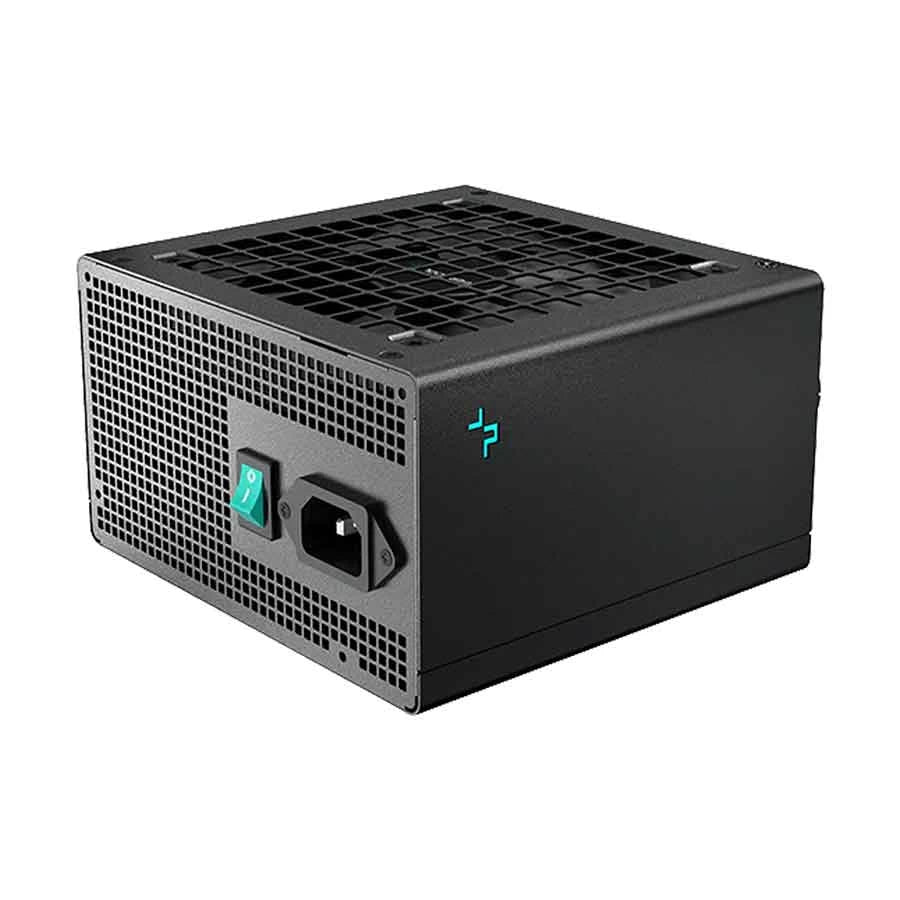

Deepcool PK-D Series PK550D
Series
PK-D Series
PSU Category
Non Modular
Type
ATX12V V2.4
Part No
R-PK550D-FA0B-UK
Cooling & Lighting
Fan Size
120mm
Lighting Effect
No
Lighting Type
Not Applicable
Fan Bearing
Hypro Bearing
Performance
Efficiency
85% Efficiency
Efficiency Rating
80 Plus Bronze
PFC (Power Factor Correction)
Active
Power Good Signal
100-150ms
Hold Up Time
> - 16ms(80% Load)
Protection
Protection
SCP, OPP, OTP, OVP, OCP, UVP
Over Voltage Protection (OVP)
Yes
Over Power Protection (OPP)
Yes
Over Current Protection (OCP)
Yes
Over Temperature Protection (OTP)
Yes
Short Circuit Protection (SCP)
Yes
Under Voltage Protection (UVP)
Yes
Connectors
ATX Main Connectors
1
EPS Connectors
2
PCIe Connectors
2
SATA Power Connectors
3
4-Pin Peripheral Connectors
1
Power
Min. Power (Approx.)
465W
Maximum Power
550 Watt
Input AC
100 - 240V, 8.0 - 4.0A, 50 - 60Hz
Input Voltage
100 - 240V
Input Frequency Range
8.0 - 4.0A
Input Current
50 - 60Hz
Peak Output Capacity
550W
Operating Temperature
0 - 40 degree C
Physical Description
Cable Type
Black direct power cable
MTBF
100,000 Hours
Form Factor
ATX
Dimensions
150 x 140 x 86mm
Color
Black
Warranty
Warranty Details
5 Year
