General
Brand
Deepcool
Model

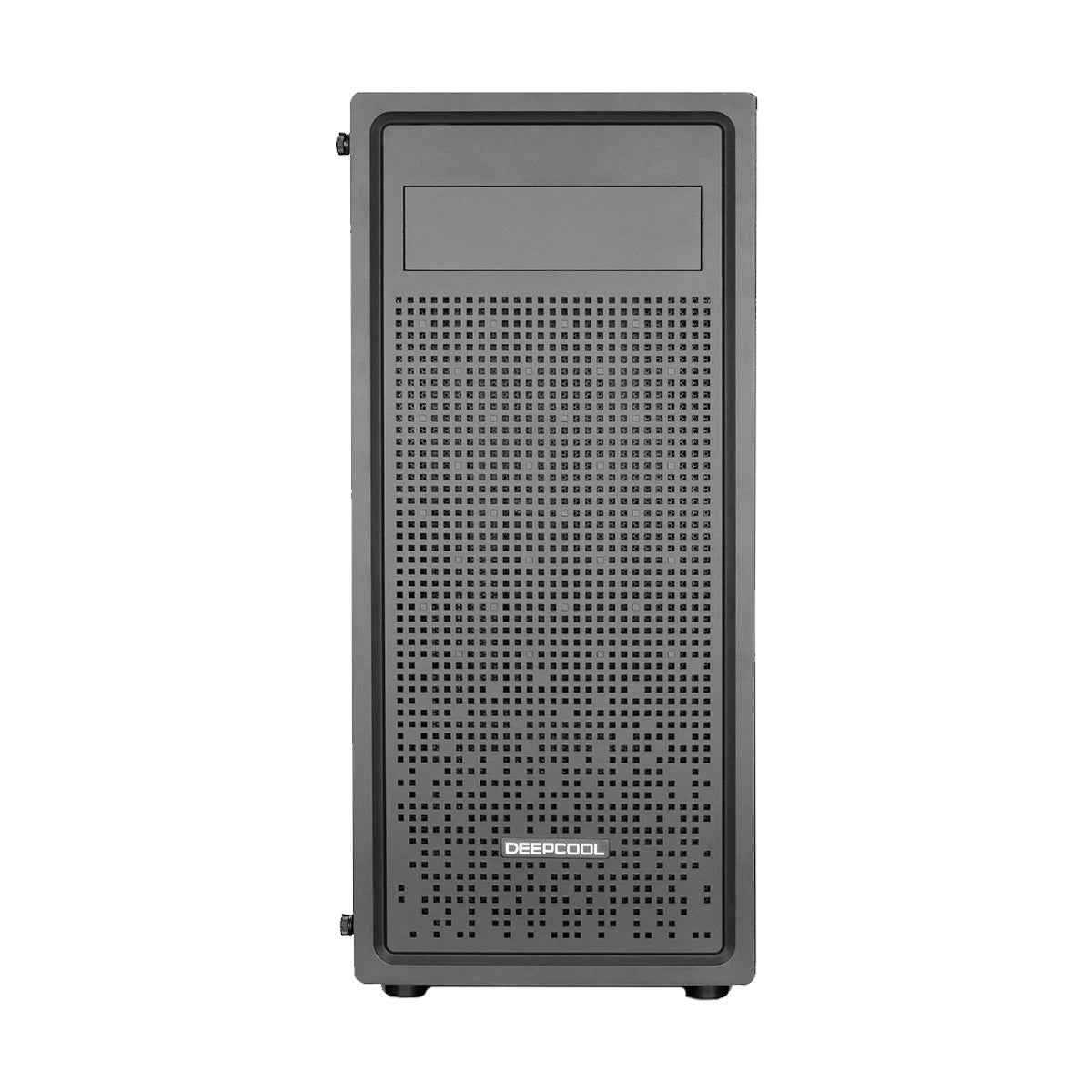

Deepcool E-SHIELD
Case Type
Mid Tower
Part No
DP-ATX-E-SHIELD
Technical Info
Supported Motherboard Type
E ATX, ATX, Micro ATX, Mini ITX
Lighting Support (Front/Top/Side)
No
Supported LED Strip
No
Fan / Light Controller
No
Back-Connect Supported
No
Graphics-Card Length
370mm
Supported CPU Cooler
Liquid Cooler
CPU Cooler Height
168mm
PSU Length
170mm
Cable Management Depth
25mm
Thickness
4mm
Ports & Slots
Front/Top USB port
1 x USB3.0, 2 x USB2.0
Front/Top Audio Port
1 x Audio jack, 1 x Mic jack
5.25 Inch Drive Bay
1
3.5 Inch Drive Bay
2
2.5 Inch Drive Bay
4 (2+2)
1.8 Inch Drive Bay
No
Expansion Slots
7
Optical Drive Bay
Yes
Memory Card Slot
No
Fan & Radiator Details
Cooling Fan (Built-In)
1
Additional Fan Slot
4
Pre-Installed Fan Size
120mm
Supported Fan Size
Front: 3 x 120/ 3 x 140mm, Top: 2 x 120/ 2 x 140mm
Lighting Fan
No
Radiator Support Front/Top/Rear
Front: 120/140/240/280/360mm(280/360mm without CD-ROM), Top: 120/140/240mm, Rear: 120mm
Power
Power Supply (Built-In)
No
Power Supply Type
ATX PS2
Power Supply Mounted
Bottom
Approx. Power Consumption
5W
Physical Description
Transparent Side Window
Yes
Case Windowed
Tempered Glass
Buttons
1 x Power, 1 x Reset
Number of Buttons
2
Material
ABS+SPCC+Tempered Glass
Color
Black
Dimensions
477 x 210 x 438mm
Weight (Kg)
6.36Kg
Handle
No
Warranty
Warranty Details
1 Year
