General
Brand
Deepcool
Model

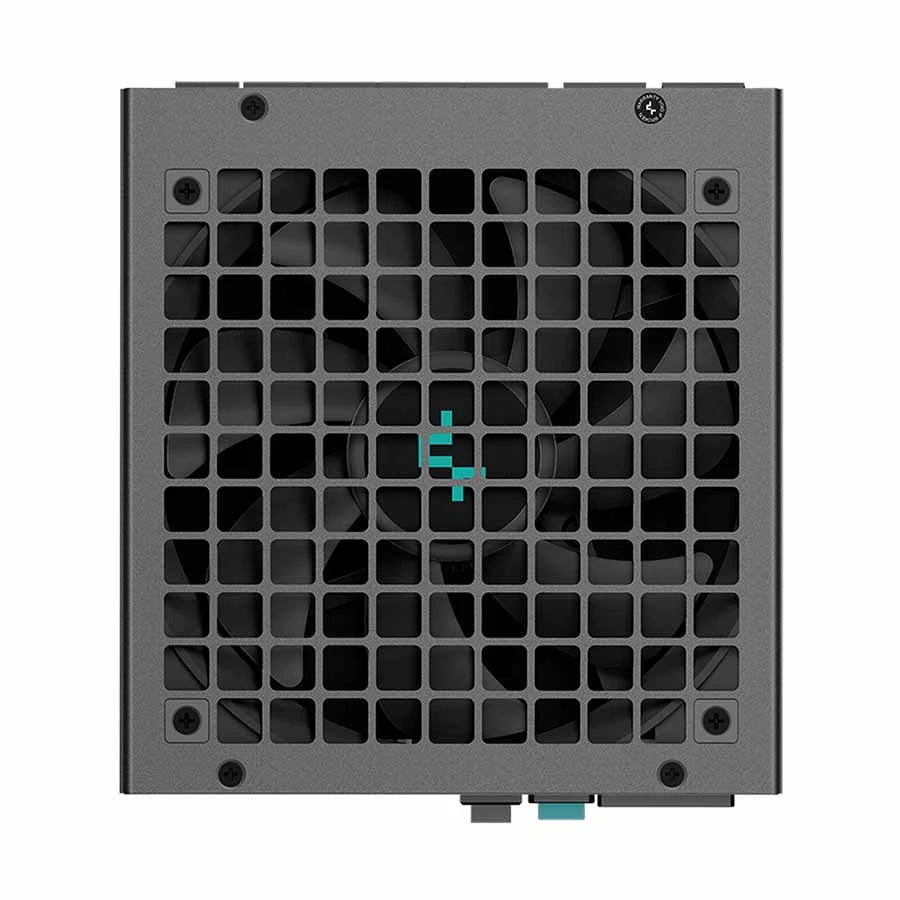

Deepcool PX1200G
PSU Category
Full Modular
Type
ATX 12V V3.0
Cooling & Lighting
Fan Size
135mm
Lighting Effect
No
Zero RPM Fan Mode
Yes
Fan Bearing
FDB
Performance
Efficiency
90% Efficiency
Efficiency Rating
80 Plus Gold
Power Good Signal
100-150ms
Hold Up Time
>=16ms
Protection
Protection
OPP/OVP/SCP/OTP/OCP/UVP
Over Voltage Protection (OVP)
Yes
Over Power Protection (OPP)
Yes
Over Current Protection (OCP)
Yes
Over Temperature Protection (OTP)
Yes
Short Circuit Protection (SCP)
Yes
Under Voltage Protection (UVP)
Yes
Connectors
ATX Main Connectors
1
EPS Connectors
2
PCIe Connectors
3
SATA Power Connectors
8
4-Pin Peripheral Connectors
4
Power
Min. Power (Approx.)
1080W
Maximum Power
1200 Watt
Input AC
100 - 240 Vac, 15 - 7.5A, 50 - 60Hz
Input Voltage
100 - 240 Vac
Input Frequency Range
50 - 60Hz
Input Current
15 - 7.5A
Peak Output Capacity
1200 Watt
Operating Temperature
0 - 40 Degree C
Physical Description
MTBF
100000 Hours
Form Factor
ATX
Dimensions
150 x 160 x 86mm
Color
Black
Warranty
Warranty Details
10 year
