General
Brand
Deepcool
Model

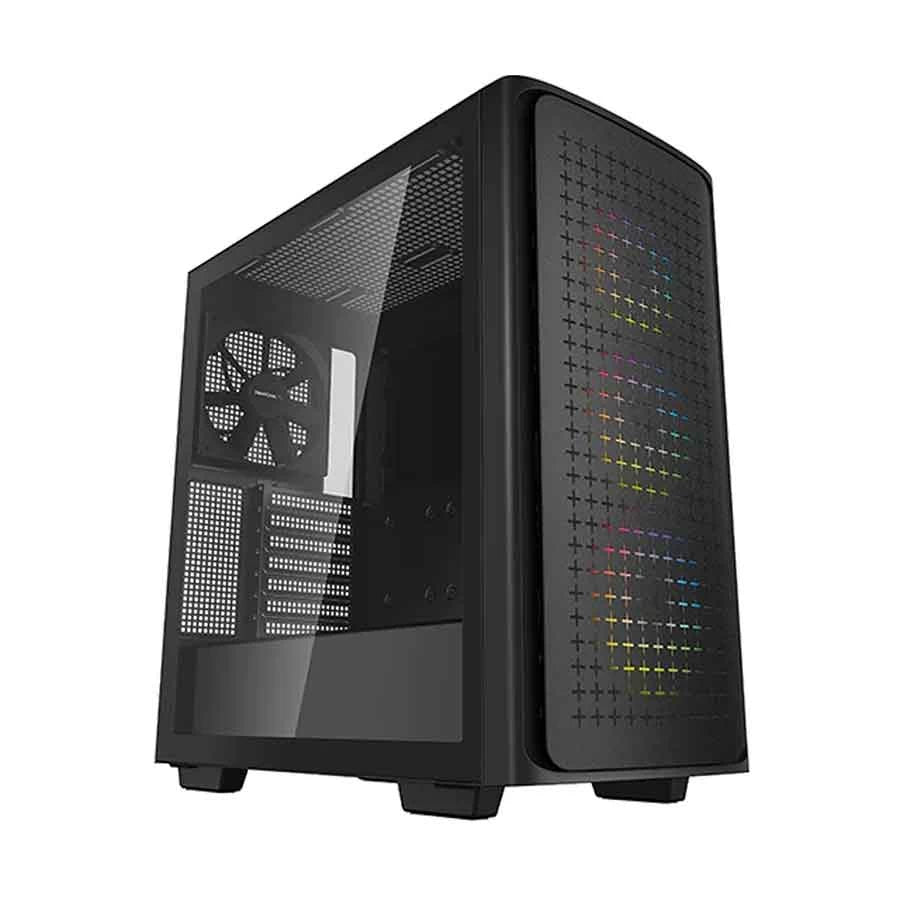

Deepcool CK560
Series
Gaming Casing
Case Type
Mid Tower
Part No
R-CK560-BKAAE4-G-1
Technical Info
Supported Motherboard Type
Mini-ITX / Micro-ATX / ATX / E-ATX
Supported LED Strip
No
Fan / Light Controller
Yes
Illumination
Sync with the motherboard
Back-Connect Supported
No
Graphics-Card Length
380mm
Supported CPU Cooler
Air Cooler or Liquid Cooler
CPU Cooler Height
175mm
PSU Length
160mm
Ports & Slots
Front/Top USB port
2 x USB 2.0, 1 x USB Type-C
Front/Top Audio Port
1 x Audio In/Out
5.25 Inch Drive Bay
No
3.5 Inch Drive Bay
2
2.5 Inch Drive Bay
2
1.8 Inch Drive Bay
No
Expansion Slots
7
Optical Drive Bay
No
Memory Card Slot
No
Fan & Radiator Details
Cooling Fan (Built-In)
4
Additional Fan Slot
2
Pre-Installed Fan Size
3 x 120mm (Front), 1 x 140mm (Rear)
Supported Fan Size
3 x 120 / 2 x140mm (Front), 2 x 120 / 2 x 140mm (Top), 1 x 120 / 1 x 140mm (Rear)
Lighting Fan
ARGB
Radiator Support Front/Top/Rear
120/ 140/ 240/ 280/ 360mm (Front), 120/ 140/ 240/ 280mm (Top), 120/ 140mm (Rear)
Power
Power Supply (Built-In)
No
Power Supply Type
ATX PS2
Power Supply Mounted
Bottom
Approx. Power Consumption
30W
Physical Description
Transparent Side Window
Yes
Case Windowed
Tempered Glass
Buttons
1 x Power, 1 x LED
Number of Buttons
2
Material
ABS + SPCC
Dust Cover
Front, Top & Bottom
Color
Black
Dimensions
471 x 230 x 456mm
Weight (Kg)
8 Kg
Handle
No
Warranty
Warranty Details
1 Year
