General
Brand
Deepcool
Model

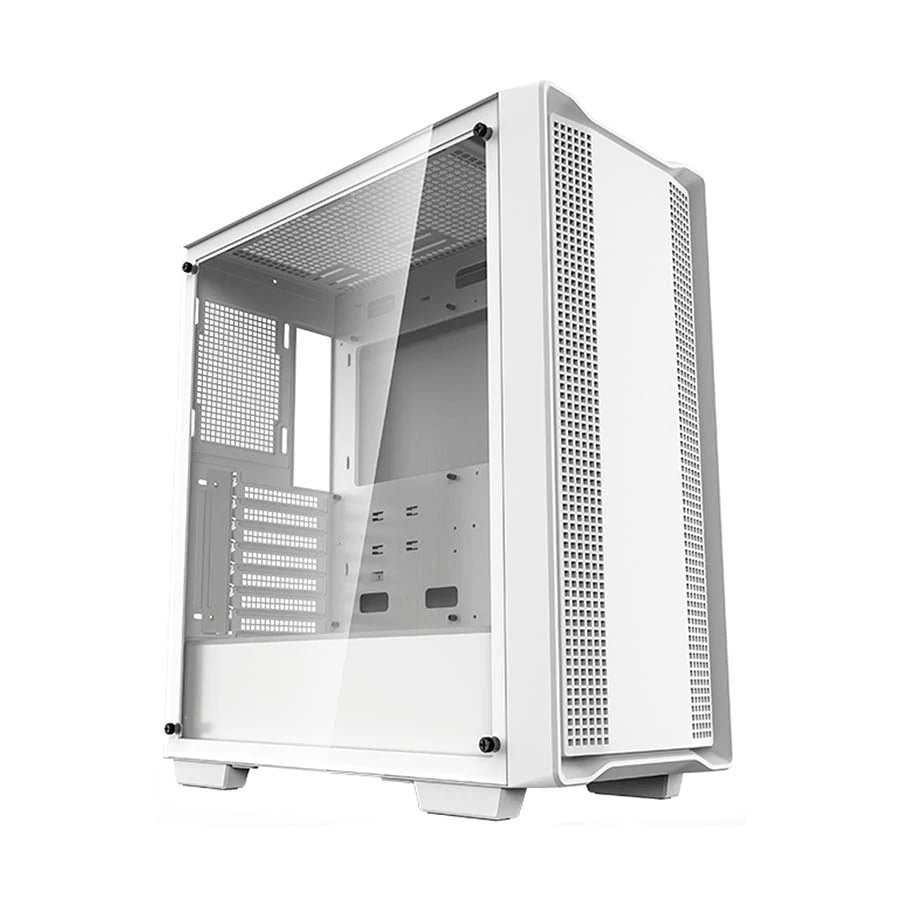

Deepcool CC560 WH Limited
Series
Gaming
Case Type
Mid Tower
Part No
R-CC560-WHNAA0-C-1
Technical Info
Supported Motherboard Type
ATX, Micro-ATX, Mini-ITX
Lighting Support (Front/Top/Side)
No
Supported LED Strip
No
Fan / Light Controller
No
Back-Connect Supported
No
Graphics-Card Length
370mm
Supported CPU Cooler
Air Cooler or Liquid Cooler
CPU Cooler Height
163mm
PSU Length
170mm
Ports & Slots
Front/Top USB port
1 x USB 3.0, 1 x USB 2.0
Front/Top Audio Port
1 x Audio Combo
5.25 Inch Drive Bay
No
3.5 Inch Drive Bay
2
2.5 Inch Drive Bay
2
1.8 Inch Drive Bay
No
Expansion Slots
7
Optical Drive Bay
No
Memory Card Slot
No
Fan & Radiator Details
Cooling Fan (Built-In)
No
Additional Fan Slot
6
Pre-Installed Fan Size
No
Supported Fan Size
3 x 120mm/2 x 140mm (Front), 2 x 120/2 x 140mm (Top), 1 x 120mm (Rear)
Lighting Fan
No
Radiator Support Front/Top/Rear
120/140/240/280/360mm (Front), 120/240mm (Top), 120mm (Rear)
Power
Power Supply (Built-In)
No
Power Supply Type
ATX (Not Included)
Power Supply Mounted
Bottom
Approx. Power Consumption
5W
Physical Description
Transparent Side Window
Yes
Case Windowed
Tempered Glass
Buttons
Power, Reset
Number of Buttons
2
Material
ABS+SPCC+Tempered Glass
Dust Cover
Magnetic Dust Filter (Top)
Color
White
Dimensions
416 x 210 x 477mm
Weight (Kg)
5Kg
Handle
No
Warranty
Warranty Details
1 year
