| CPU Support | Support Intel® Corei7/i5/i3/Pentium/Celeron processors in the LGA1150 package. Support Intel 4th generation multi-core processors. |
| Chipset | Intel H81 Chipset |
| On-Board Graphics | Integrated Graphics Processor |
| Memory | Dual Channel DDR3 1066/1333/1600MHz, Supports non-ECC, un-buffered memory |
| DIMM | 2 x Memory Slots (Max. up to 8GB each) |
| LAN | Onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps (Optional) |
| Audio | Onboard Realtek 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack |
| SATA | 3 x SATA, 1xM.2 supports NVME+NGFF |
| Rear I/O | 1 x VGA port 1 x HDMI port 4 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack (Line in / Line Out / Mic-in) |
| Internal I/O | 1 x USB 2.0 pin header supports additional 2 USB 2.0 ports 1 x Front Panel Audio pin-header |
| Expansion Slots | 1 x PCI Express x16 slot |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX (19 X 17 cm) |
| Mounting | 6 mounting holes |
| Accessories | 1 x SATA cable,1 x I/O Backboard,1 x User Manual,1 x Driver CD |
| Warranty | 3-Year Brand Warranty |

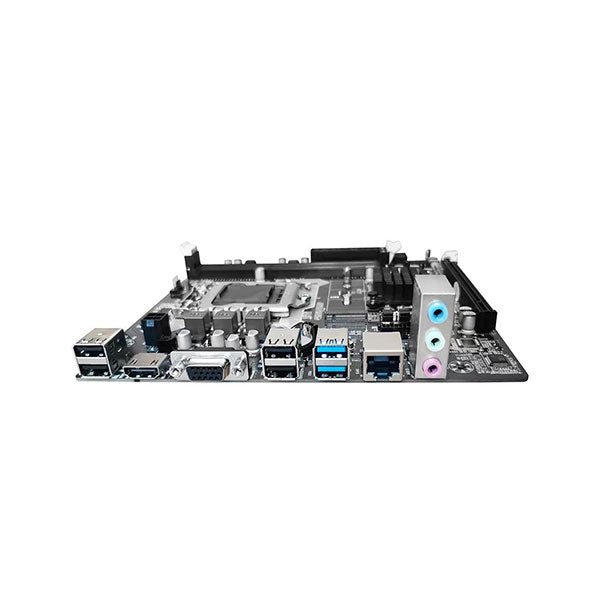

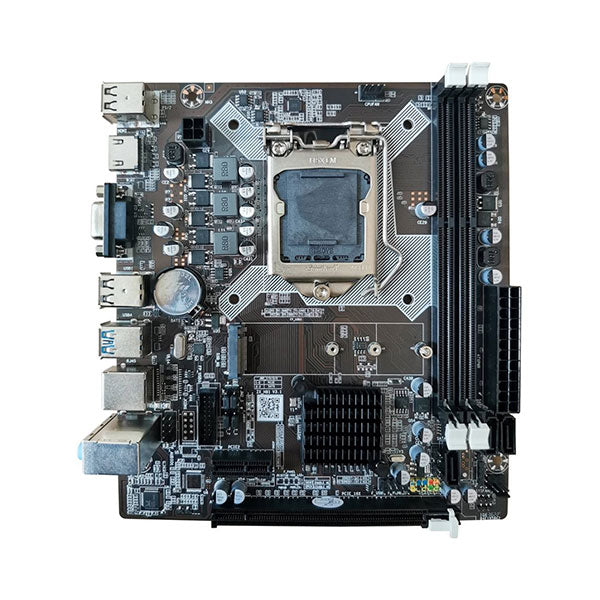

Arktek AK-H81M EL 4th Gen micro-ATX Motherboard
Regular price
Tk 5,200.00
Description
